How to Setup your SEW02 Care Label Thermal Transfer Printing System

Below we have shown some videos with some explanations of how to install/setup the printer. When you first unbox the printer, you should have the following items in the box
ZD220 Thermal Transfer Printer, UK Power Cables, USB Cable and a spare 1/2" Core (to rewind the ribbons onto).
The driver & Software can be downloaded when purchasing the SEW02 online. When installing the Printer Driver, you are looking for the ZDesigner ZD220-203dpi ZPL option.
Please note, the Satin materials and printer ribbons are then normally sent in a separate package.

Whats in the Box?

How the printer looks when the Ribbons and Satin is installed correctly

At the Rear of the printer there are 2 slots for the Power Cable and the USB Cable. Please view the video.

Installing the Media, placing the Roll of Satin material and printer ribbons into the correct positions in the printer

Printing on to the Satin material using the HL37 Black Printer Ribbon

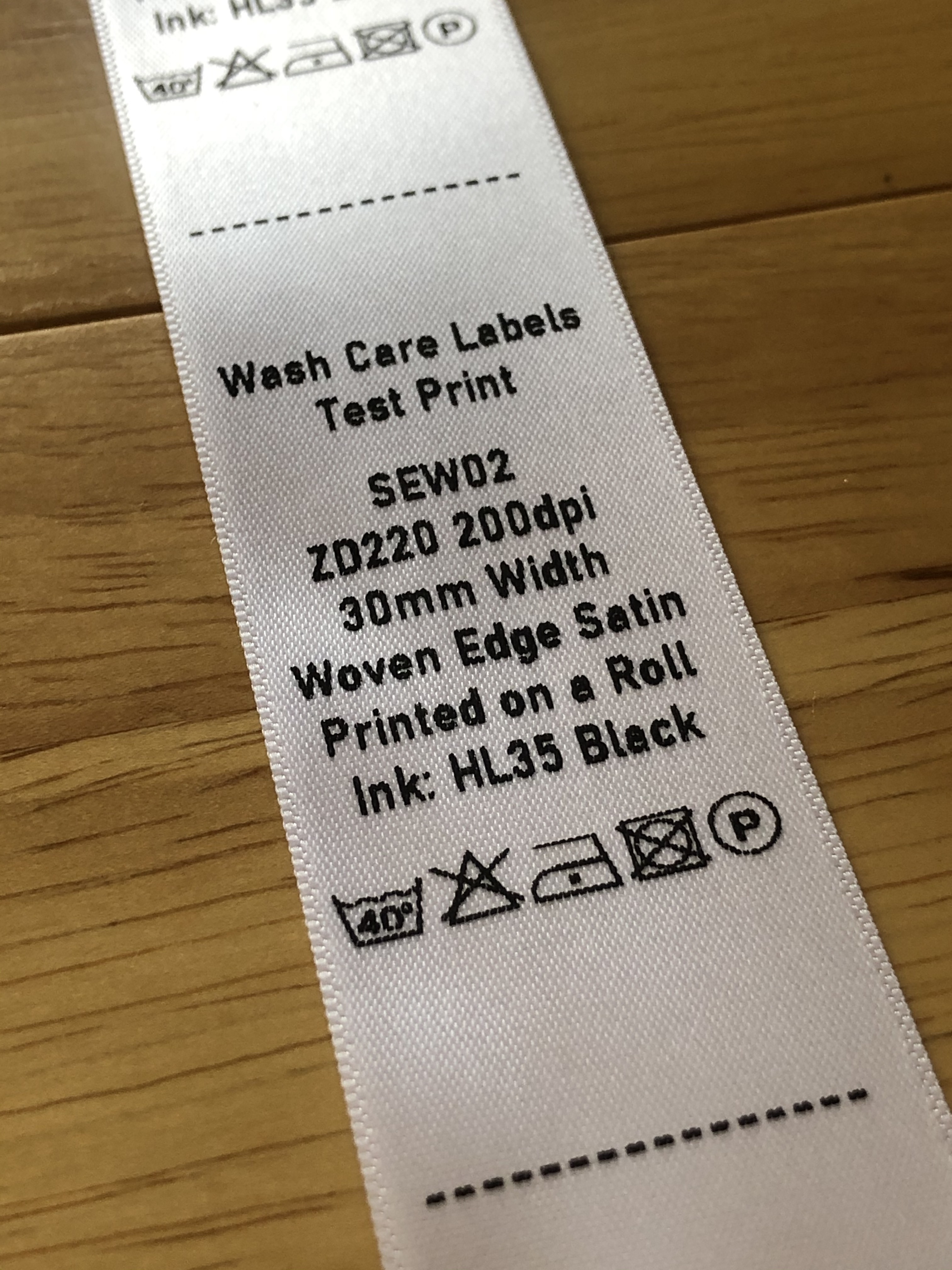

The final printed satin label example

Setting up the LATEST Printer Driver. This can be found by going into the computers control panel,

Selecting Devices and Printer and then right clicking on the correct driver (ZDesigner ZD220-203dpi ZPL) and selecting Printing Preferences.

Making sure that Continuous and Thermal Transfer are Selected.

Zebra's Printer Set Utility Tool, helps install, setup and communicate with your Zebra Printers

A few other helpful tools available using Zebra's Printer Set Utility Tool.

How to use Zebra Designer Essentials Software
